Description

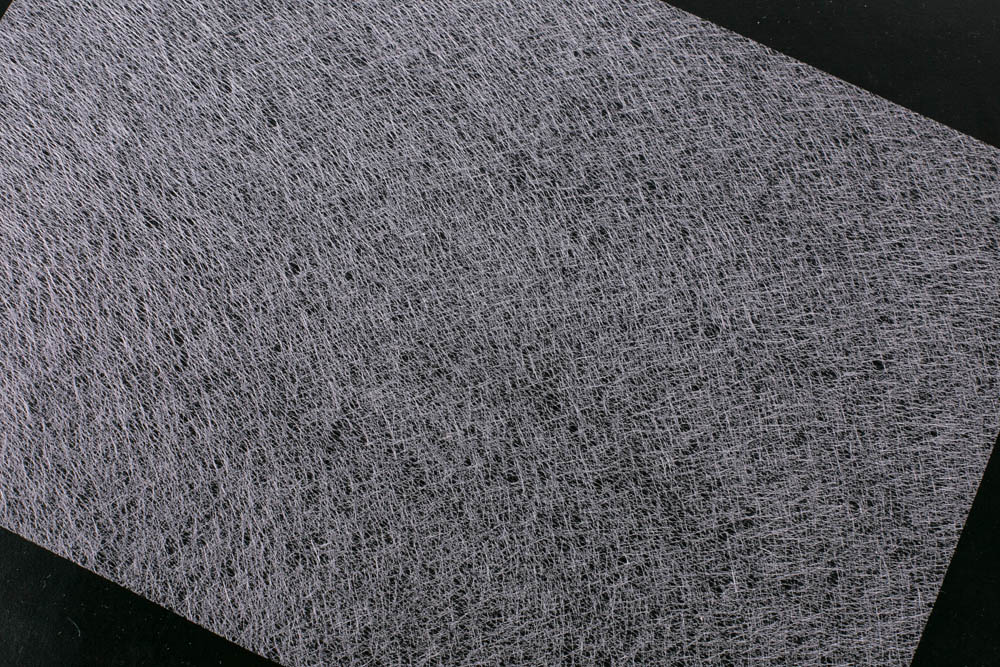

Fiberglass surfacing mat is mainly used in the surface of FRP. It is compatible with polyester, Vinyl ester, Epoxy resin and can be used in hand lay-up, Filament winding etc, process.
The typical products are tank, pipe, laminate etc. Fiberglass surfacing tissue can improve the fineness, apparent quality, weathering resistance, anti-aging and corrosion resistance of the FRP. It also can ensure FRP to extend the life.
Product Characteristics:
1.Type of glass: “C glass”or “E glass”
2.Area weight: from 30g/m2 to 120 g/m2.
3.Flat surface
4.Uniform fiber distribution
5.Rapid impregnating
6.Good drape
Specification:
ITEM | Unit | Type | |||||
F-20 | F-30 | F-50 | F-30 | H-40 | H-50 | ||
Area Weight | G/m² | 20 | 30 | 50 | 30 | 40 | 50 |
Binder Content | % | 7.0 | 6.0 | 6.0 | 7.0 | 6.0 | 6.0 |
Penetrating Time (two layers) | S | ＜8 | ＜10 | ＜16 | ＜10 | ＜15 | ＜20 |
Tensile Strength MD | N/5cm | ≥20 | ≥25 | ≥40 | ≥20 | ≥25 | ≥30 |
Moisture Content | % | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
Paper Core Internal Dia | mm | 75 | 75 | 75 | 75 | 75 | 75 |
The width and length of each roll are according to customer's requirements, and the other specification are according to the customer's requirements.
Packing:
Each roll is wound on a cardboard tube and packed with poly bag,corrugated carton outside.
