Vacuum bagging material
Description

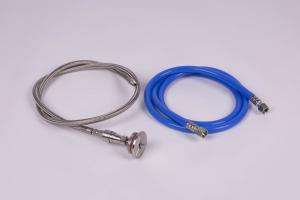

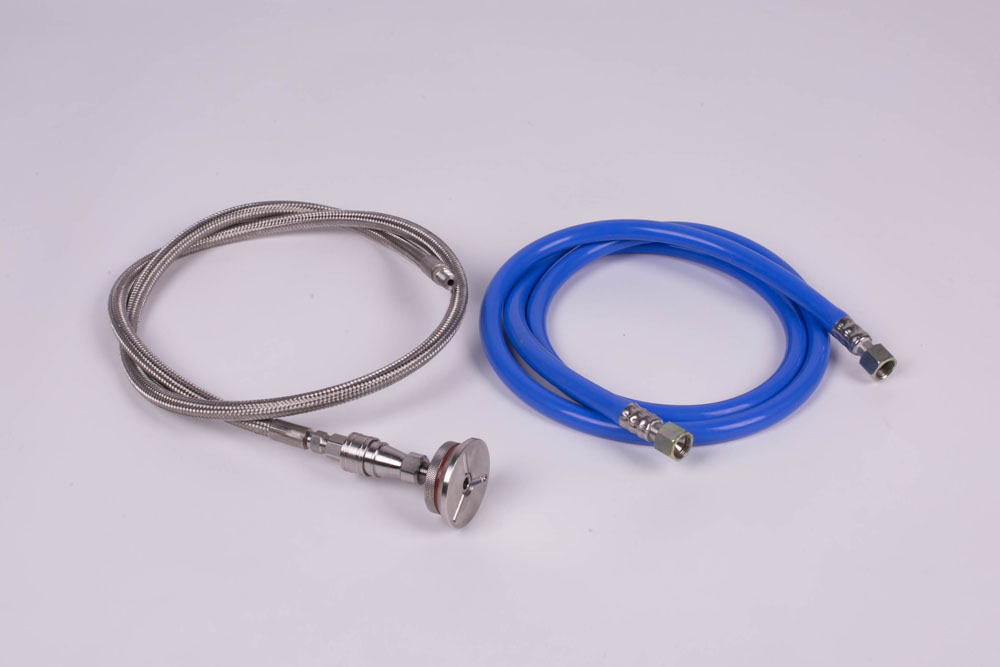

Vacuum Valves,Hoses,Quick disconnects for autoclave etc process.
The specificationcustomized according to customer needs.
Valve
Item | Working Temperature(℃） | Screw Thread | Round Plate | Gasket |
SV-201 | 260℃ | 1/4 inch NPT | stain less steel(63mm) | Silicon |
Hose: Interlocking steel tube
End fitting connection with quick disconnect:1/4 inch male NPT threaded.
Item | Internal diameter /Outside diameter(mm) | Working Temperature(℃） | Max pressure | Material |
SH-301 | 16/8.5 | 200℃ | 0.9MPA | Silicon |
SH-302 | 13/8 | 200℃ | 2.2MPA | internal PTFE braid stainless steel |
SH-303 | 13/8 | 200℃ | 1.6MPA | braid stainless steel |
Two piece quick disconnect
Technical duta
Type : SQD401 Stainless steel
Material : steel
Screw thread : 1/4 inch NPT
Gasket : Fluoro-rubber
Working Temperature : 260℃
